1:500 · project · urban

Páramo Topography

Separador vial · Centro Internacional, Bogotá · 2026 · urban

01/11aerial viewconcept

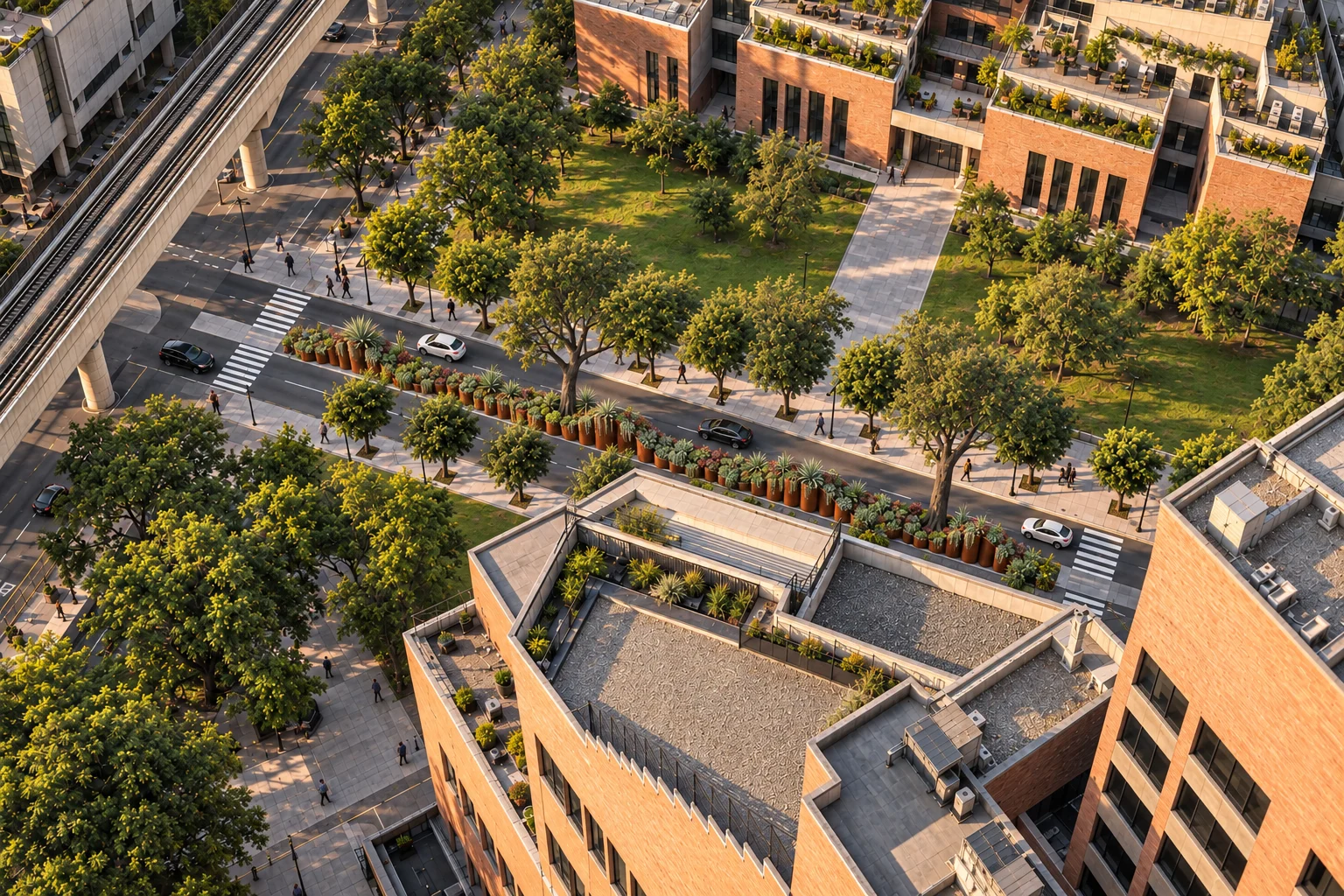

The whole

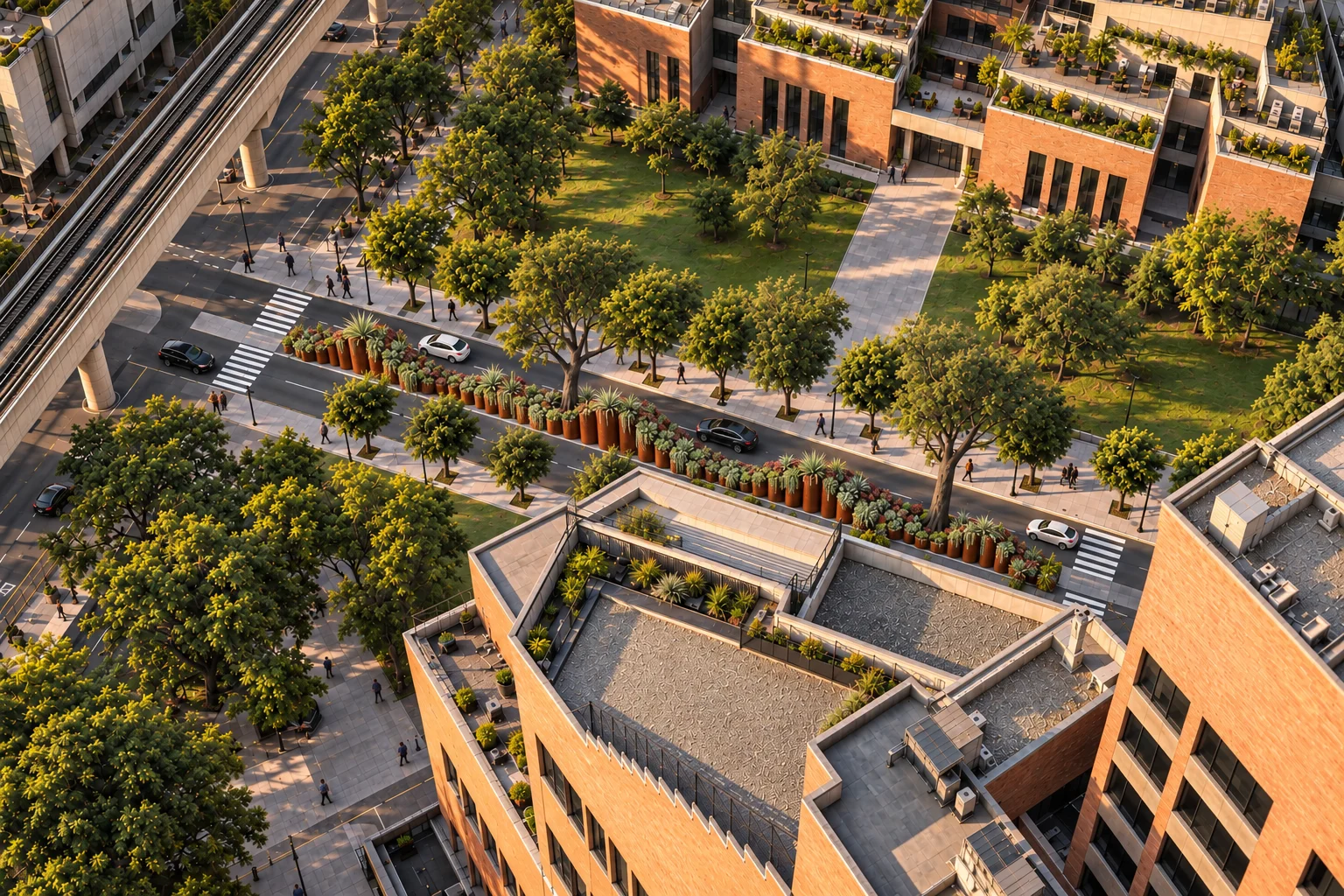

A páramo of steel on a road median: 336 tubes and Andean succulents, dense at the ends, scattered in the middle.

programme: urban
place: Separador vial · Centro Internacional, Bogotá
year: 2026
Median: 85.00 × 2.50 m
Pieces: 336 tubes in 5 diameters (Ø48", 36", 24", 16", 10")
Material: 58 six-metre tubes · galvanised steel, corten-look epoxy

03/11interiorconcept

West end

Large and close

level: ground floor · ±0.00
use: high density
colour temperature: 2,700–3,000 K

materials and finishes
Tubes	Galvanised steel, 6 m tube cut to lengthtextured corten-look epoxy · ground top edge
Planting	Echeveria (blue-grey rosette)low rosette · drip irrigation
Bed and topping	Loose gravel on topsoil, geotextile and crushed stonegrey river gravel · free-draining

furniture

Ø48" and Ø36" tubes, 1.20 and 0.90 m tall

lighting

Recessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

The 48- and 36-inch tubes nearly touch: the corten-look steel forms a 1.20 m undulating wall and blue echeverias crown each mouth. It is the median’s gateway to the avenue.

04/11interiorconcept

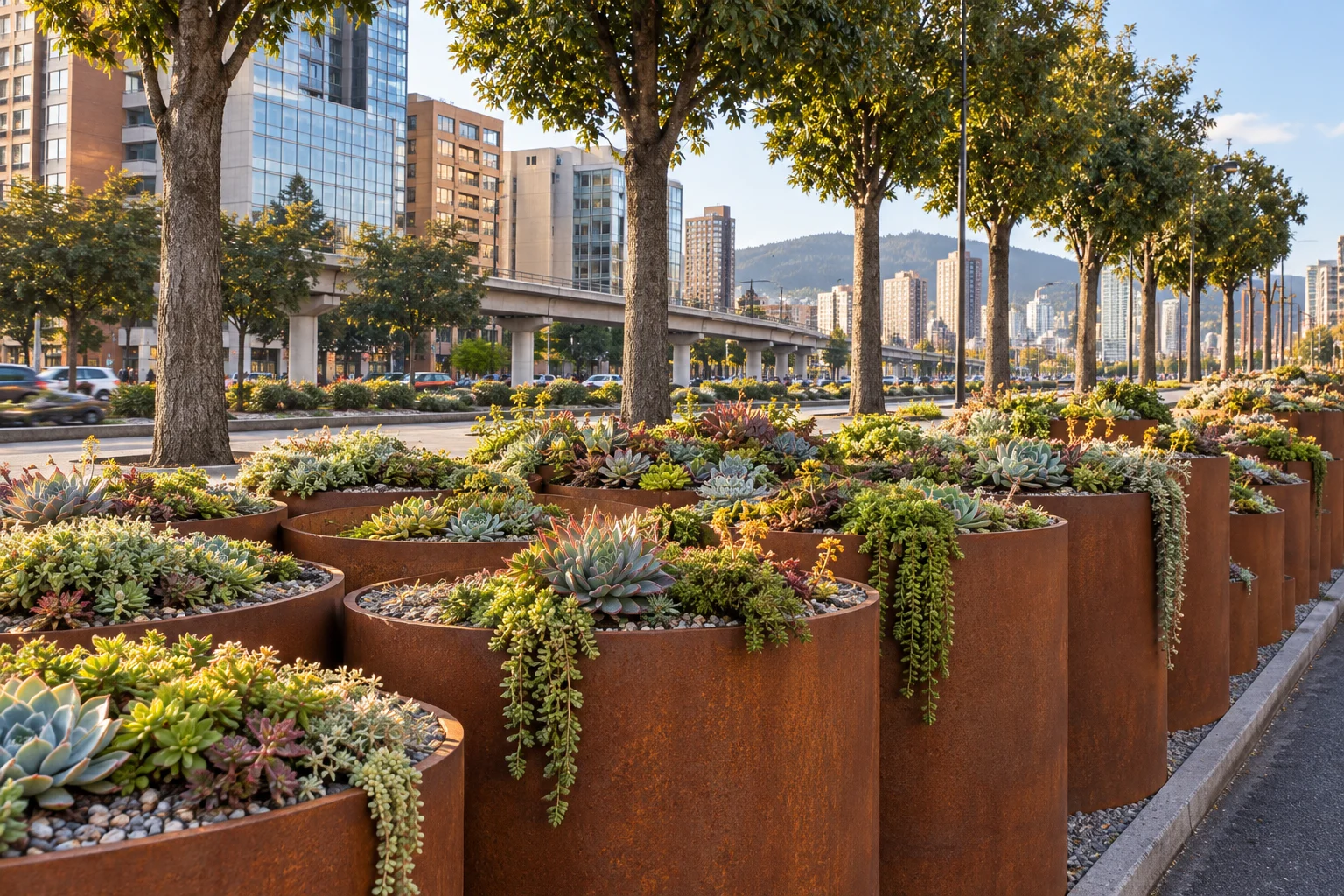

The succulents

A páramo at hand

level: ground floor · ±0.00
use: planting detail
colour temperature: 2,700–3,000 K

materials and finishes
Planting	Sedum and Echeverialow rosette · drip irrigation
Bed and topping	Loose gravel on topsoil, geotextile and crushed stonegrey river gravel · free-draining
Tubes	Galvanised steel, 6 m tube cut to lengthtextured corten-look epoxy · ground top edge

furniture

Ø24" tubes, 0.60 m tall

lighting

Recessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

Inside each tube, top to bottom: Andean-climate succulents, loose gravel, topsoil with gravel, geotextile, crushed stone and a sand base. Green sedum and echeveria share this stretch; they need little water and stand the cold at 2,600 m.

05/11interiorconcept

The middle

Small and scattered

level: ground floor · ±0.00
use: low density
colour temperature: 2,700–3,000 K

materials and finishes
Planting	Graptopetalum and Sedumlow rosette · drip irrigation
Kerb	Grey graniteflamed · flush with the gravel
Bed and topping	Loose gravel on topsoil, geotextile and crushed stonegrey river gravel · free-draining

furniture

Ø16" and Ø10" tubes, 0.40 and 0.25 m tall

lighting

Recessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

In the middle, the 16- and 10-inch tubes, 0.40 and 0.25 m tall, sit loose on the gravel: the median drops and lets the view pass from one sidewalk to the other. Pink graptopetalum marks the halfway point.

06/11interiorconcept

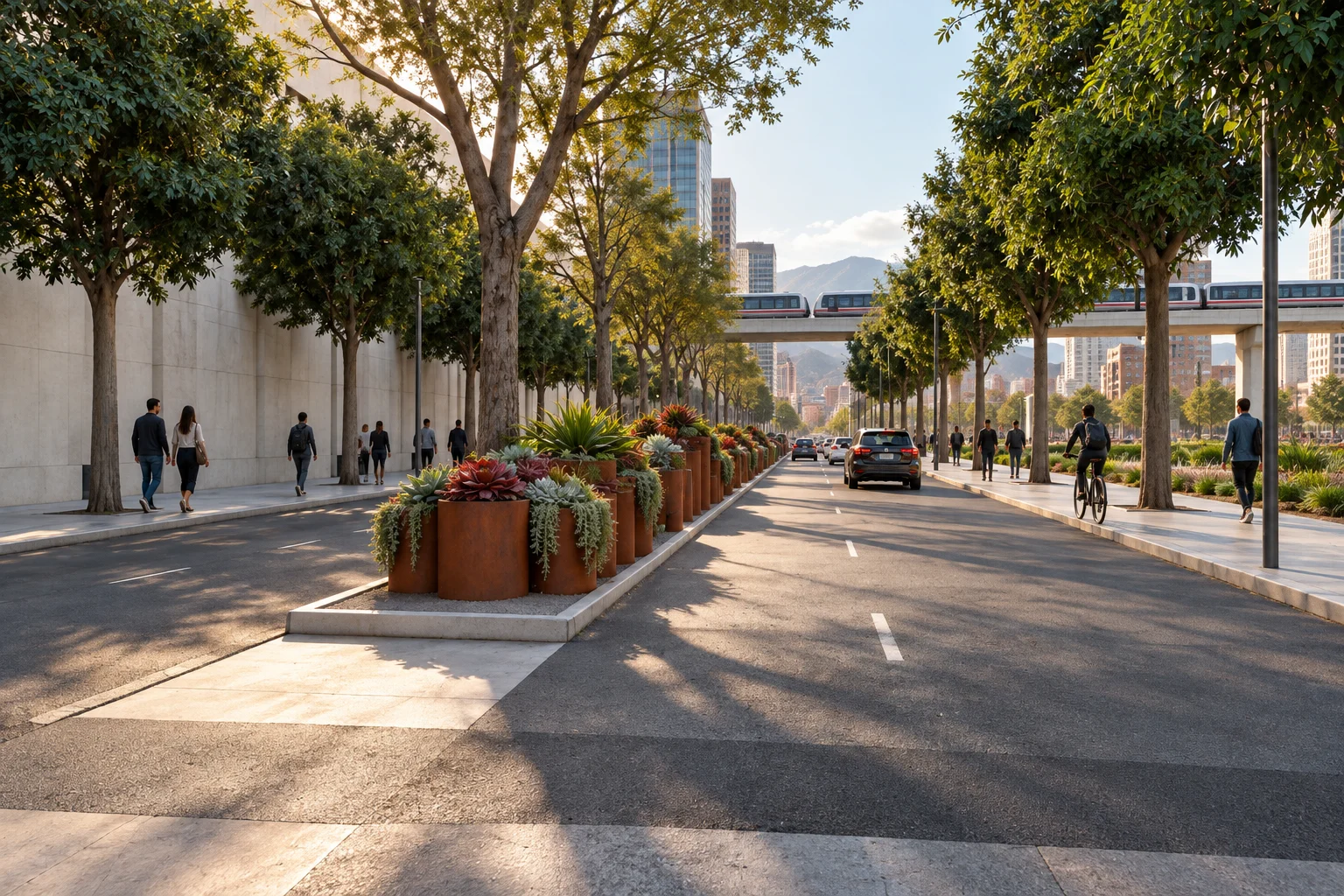

East end

It rises again

level: ground floor · ±0.00
use: high density
colour temperature: 2,700–3,000 K

materials and finishes
Tubes	Galvanised steel, 6 m tube cut to lengthtextured corten-look epoxy · ground top edge
Planting	Sempervivum (red rosette)low rosette · drip irrigation
Kerb	Grey graniteflamed · flush with the gravel

furniture

Ø48" and Ø36" tubes

lighting

Recessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

Toward the east the density returns: tall, close tubes, red and orange sempervivum. Looking west, the median reads whole as a topography that falls and rises, with the viaduct and the towers beyond.

3D walk-through

← all work

place: Separador vial · Centro Internacional, Bogotá
year: 2026
use: urban
Status: Proposal
Median: 85.00 × 2.50 m
Pieces: 336 tubes in 5 diameters (Ø48", 36", 24", 16", 10")
Material: 58 six-metre tubes · galvanised steel, corten-look epoxy

A páramo of steel on a road median: 336 tubes and Andean succulents, dense at the ends and scattered in the middle.

A t1x1 project. Andean succulents. A metal topography reinterprets the Andean páramos in the heart of the city: a field of galvanised steel cylinders with a textured corten-look epoxy finish, arranged along a density gradient and planted with high-Andean succulents, turns 85 metres of road median into an urban-scale built landscape.

The median measures 85.00 × 2.50 m on the street north of the Centro Internacional towers, from the east sidewalk of Av. Caracas, beneath the Line 1 metro viaduct. Five tube diameters —48, 36, 24, 16 and 10 inches, from 1.20 to 0.25 m tall— add up to 336 pieces cut from 58 six-metre tubes.

The rule is parametric: along the median, large, close tubes gather at the ends and small ones scatter in the middle; across it, the tall ones sit on the axis and the low ones by the kerbs, from 0.30 m to 1.60 m with the plants. Inside each tube: alpine tundra plants, loose gravel, topsoil with gravel, geotextile, crushed stone and a sand base. Echeveria, Sedum, Graptopetalum and Sempervivum shift colour from west to east; projectors at the foot of the large tubes light them at night.

Siting, street section and the true length of the median between Av. Caracas and Carrera 12: to be verified on site.

◆ Design: Gabriel Carvajal · t1x1

The 3D view is not available in this browser.

Living plan · Páramo Topography

A páramo of steel on a road median: 336 tubes and Andean succulents, dense at the ends, scattered in the middle.

01 / 08 · plan · cut at 1.20 m

The median, cut at 1.20 m

85.00 × 2.50 m on the street north of the Centro Internacional towers, from the east sidewalk of Av. Caracas, beneath the Line 1 metro viaduct. Five tube diameters, from 10 to 48 inches: 336 pieces cut from 58 six-metre tubes.

04 / 08 · high density

Large and close

The 48- and 36-inch tubes nearly touch: the corten-look steel forms a 1.20 m undulating wall and blue echeverias crown each mouth. It is the median’s gateway to the avenue.

material schedule
Tubes	Galvanised steel, 6 m tube cut to lengthtextured corten-look epoxy · ground top edge
Planting	Echeveria (blue-grey rosette)low rosette · drip irrigation
Bed and topping	Loose gravel on topsoil, geotextile and crushed stonegrey river gravel · free-draining

furnitureØ48" and Ø36" tubes, 1.20 and 0.90 m tall

lightRecessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

05 / 08 · planting detail

A páramo at hand

material schedule
Planting	Sedum and Echeverialow rosette · drip irrigation
Bed and topping	Loose gravel on topsoil, geotextile and crushed stonegrey river gravel · free-draining
Tubes	Galvanised steel, 6 m tube cut to lengthtextured corten-look epoxy · ground top edge

furnitureØ24" tubes, 0.60 m tall

lightRecessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

06 / 08 · low density

Small and scattered

material schedule
Planting	Graptopetalum and Sedumlow rosette · drip irrigation
Kerb	Grey graniteflamed · flush with the gravel
Bed and topping	Loose gravel on topsoil, geotextile and crushed stonegrey river gravel · free-draining

furnitureØ16" and Ø10" tubes, 0.40 and 0.25 m tall

lightRecessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

07 / 08 · high density

It rises again

Toward the east the density returns: tall, close tubes, red and orange sempervivum. Looking west, the median reads whole as a topography that falls and rises, with the viaduct and the towers beyond.

material schedule
Tubes	Galvanised steel, 6 m tube cut to lengthtextured corten-look epoxy · ground top edge
Planting	Sempervivum (red rosette)low rosette · drip irrigation
Kerb	Grey graniteflamed · flush with the gravel

furnitureØ48" and Ø36" tubes

lightRecessed projector in the gravel at the foot of each large tube, 2700 K, 40° beam; street poles at 3000 K

Project model in metres · proposed materials and furniture, not supplier-verified

Interactive model

Explore the model

The same model as the walk-through, complete with its materials, furniture and people. Turn it, move closer and look at every room from wherever you like.

loads only when opened

The 3D view is not available in this browser.
